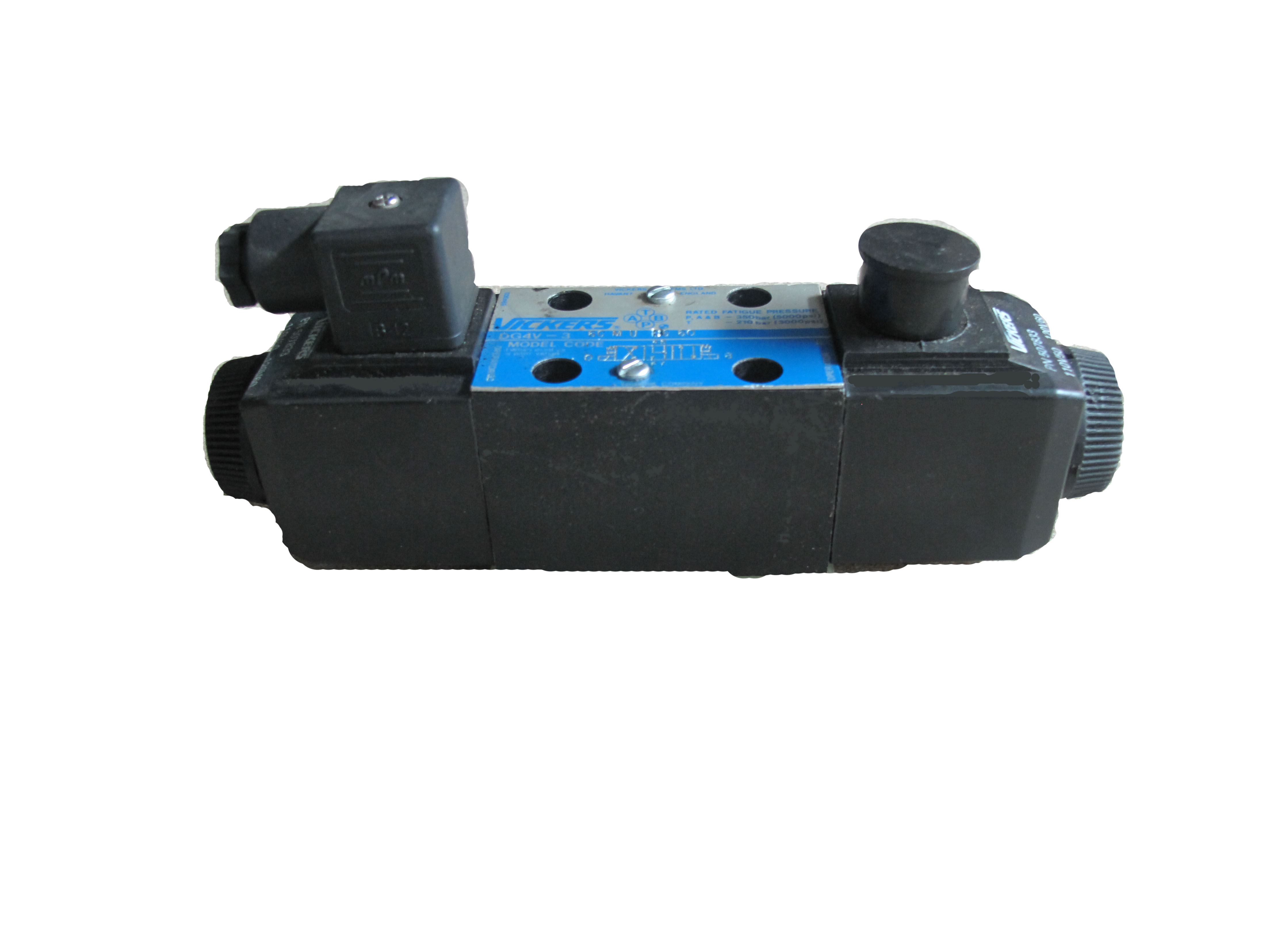

DG4V-3-6C-M-U-B6-60

Mô tả chi tiết

Thông số kỹ thuật

Model	Max. Press. (MPa)	Max. Flow (L/min)	Tank Port Backpress. (MPa)	Max. Shift. Freq. (times / min.)			Mass (kg)
							Single Sol.		Double Sol.
				AC	DC	ADC
DG4V-3	35	consult mfr.	20.6	300	300	120	AC 1.6	DC 1.7	AC 2.0	DC 2.1

Thông số kỹ thuật SOLENOID

Power	Volt. Code	Volt. (V)	Freq. (Hz)	Start. Current (A)	Holding Current (A)	Power Consump. (W)	Allow. Volt. Fluct. (%)	Insul. Class
(AC)	T	100	50	1.8	0.52	23	+10, -15	H type (180)
		100	60	1.4	0.40	20	+20, -10
		110	60	1.6	0.46	24	+10, -15
	B	110	50	1.6	0.47	23	+10, -15
		115	60	1.3	0.36	22	+15, -10
		120	60	1.5	0.42	24	+10, -15
	V	200	50	0.9	0.26	23	+10, -15
		200	60	0.7	0.20	20	+20, -10
		220	60	0.8	0.23	24	+10, -15
	D	220	50	0.8	0.24	23	+10, -15
		230	60	0.65	0.18	22	+15, -10
		240	60	0.75	0.21	24	+10, -15
(DC)	G	12	-	-	2.40	29	?10	F type (155)
	H	24			1.16	28
	J	48			0.6	29
	R	100			0.34	34
AC->DC (rectified) (ADC)	TR	AC100 V50/60Hz ->DC90 V (coil)		-	0.37	34	?10	F type (155 )
AC->DC (rectified) (ADC)	VR	AC200 V50/60Hz ->DC180 V (coil)		-	0.20	36	?10	F type (155 )

DG4V-3- *** -10-JA-S310 Series solenoid valves
(this model has functional and product level interchangeability with and is superceded by model DG4V-3-***-52)

DG4V-3-6C-M-U-B6-60
